Fluke 113 True-RMS Utility Multimeter, CAT III 600V, CAT IV 300V
- VCHEKTM LoZ low impedance measurement function
- True-rms for accurate ac measurements
- Large backlit display
- Category CAT III 600V and Category IV 300V
- Diode test for testing general-purpose germanium, silicon, and power diodes
- Integral holster with probe holders for easy storage
- Auto and Manual ranging for added user functionality
- Category CAT III 600 V and Category IV 300 V standards for a higher level of safety
- The optional TPAK magnetic hanger allows the user hands-free flexibility
Applications
Industrial, Utilities, Test & Measurement
Contents
TL75 Test Leads, One 9V Battery, Printed User Manual
Designed for easy one-hand operation, the Fluke 114 true-rms digital multimeter is the perfect troubleshooting tool for "go/no go" testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. The LoZ function helps identify so-called "ghost" voltage and prevent false readings. The Fluke 114 displays true-rms voltage and current readings with 6000 count resolution, and tests frequency, continuity and resistance. A large white LED backlight aids work in poorly lit areas. Its easy-open battery access door makes battery changes easy.
- Compact multimeter for electrical/everyday troubleshooting
- Min/Max/Average to record signal fluctuations
- CAT III 600V safety rated
- AutoVolt: automatic ac/dc voltage selection
- Large white LED backlight to work in poorly lit areas
- Resistance and continuity
- Surge protection :6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
- Optional TPAK magnetic hanger allows the user hands-free flexibility
- Certifications: UL, CSA, TUV, N10140 , VDE
Applications
Industrial, Maintenance & Repair, Test & Measurement
Contents
Electrical Multimeter, TL75 Test leads, holster, user's manual and 9 V battery (installed)
For general purpose electrical and electronic test requirements, the Fluke 115 true-rms digital multimeter provides the perfect answer. Its simple operation, compact design and ease of use makes it perfect for quick verifications and field service use. The Fluke 115 displays true-rms voltage and current readings with 6000 count resolution, tests diodes, frequency, continuity and capacitance and provides Min/Max/Average readings to record signal fluctuations. A large white LED backlight aids work in poorly lit areas. Its easy-open battery access door makes battery changes a snap.
- AC/DC voltage & current, resistance, frequency, capacitance and continuity tests
- Allows 20A overload current for 30 seconds (max)
- CAT III 600V safety rated
- Maximum Voltage ac/dc 600V
- 10A ac/dc current measurement (20 A overload for 30-seconds max)
- Min/Max/Average to record signal fluctuations
- All inputs are protected to CE, IEN61010-1 CAT III 600V. UL, CSA, TÜV listed
- Certifications: UL, CSA, TUV, N10140 , VDE
Applications
Industrial, Maintenance & Repair, Test & Measurement
Contents
Fluke 115 DMM, holster, installed 9V battery, 4mm silicone test lead set & user manual
The Fluke 117 is the ideal meter for demanding settings like commercial buildings, hospitals and schools. The 117 includes integrated non-contact voltage detection to help get the job done faster. The AutoV/LoZ function prevents false readings caused by ghost voltage. The Fluke 117 delivers true-rms ac voltage and current readings with 6000-count resolution. It provides Min/Max/Average readings and measures frequency and capacitance. The battery door is easy to access, so you and your Fluke 117 can stay on the job.
- VoltAlert technology for non-contact voltage detection
- AutoVolt automatic ac/dc voltage selection
- Low input impedance: helps prevent false readings due to ghost voltage
- Large white LED backlight to work in poorly lit areas
- True-rms for accurate measurements on non-linear loads
- Measures 10 A (20 A overload for 30-seconds)
- Resistance, continuity, frequency and capacitance
- Min/Max/Average with elapsed time to record signal fluctuations
- Compact ergonomic design for one-handed operation
- Compatible with optional magnetic hanger (ToolPak) for hands free operation
- CAT III 600 V safety rated
Applications
Industrial, Maintenance & Repair, Test & Measurement
Contents
Multimeter, TL75 test leads, holster, user manual, installed 9V battery
The Fluke 175 digital multimeter has the features needed to find most electrical, electro-mechanical and heating and ventilation problems. They are simple to use and have significant improvements over Fluke's original 70 Series like, True-RMS, more measurement functions, conformance to the latest safety standards, and a much larger display that's easier to view.
- Wide 1000 V measurement range
- True-rms for precise measurement of non linear signals
- Resistance, continuity and frequency
- Capacitance for motor start caps and components
Applications
Sensing & Instrumentation, Metering, Test & Measurement
Contents
Fluke 175 Multimeter, 9V installed battery, test leads and users manual
The Fluke 177 digital multimeter has the features needed to find most electrical, electro-mechanical and heating and ventilation problems. They are simple to use and have significant improvements over Fluke's original 70 Series like, True-RMS, more measurement functions, conformance to the latest safety standards, and a much larger display that's easier to view.
- Wide 1000 V measurement range
- True-rms for precise measurement of non linear signals
- Resistance, continuity and frequency
- Capacitance for motor start caps and components
Applications
Signal Processing, System Monitoring, Test & Measurement
Contents
Test leads with 4 mm lantern tips and protective cap, installed 9V battery and users manual
The Fluke 179 True RMS Digital Multimeter is the industry standard for troubleshooting and repair of electrical and electronic systems. With its precision, reliability, and ease of use, the Fluke 179 is the preferred solution for professional technicians around the world. With all the features you need to troubleshoot and repair in electrical and electronic systems, the Fluke 179 also offers a digital display with analog bar graph and built-in temperature measurements.
- Manual and automatic ranging
- Display Hold and Auto Hold
- Frequency and capacitance measurements
- Resistance, continuity and diode measurements
- Min-max-average recording
- Closed case calibration through front panel
- Ergonomic case with integrated protective holster
- Backlight for work in dimly lit areas
- Temperature measurement
- CAT III 1000 V/CAT IV 600 V
- Diode test
- True RMS AC measurements
- Display hold and auto hold
- Minimum/maximum/average reading with minimum/maximum alert
- Unsafe voltage alert (>30V)
- Battery conservation sleep mode and low battery indication
- Supplied with test leads and thermocouple probe
- Temperature measurement
- Lifetime warranty
Applications
Test & Measurement, Industrial Maintenance, Industrial, Electrical, Safety
Contents
Installed 9V battery, Test leads, Users manual
The Fluke 77-IV digital multimeter has the features needed to repair most electrical and electronic problems. This meter is simple to use and has significant improvements over Fluke's original 70 Series with more measurement functions, conformance to the latest safety standards, and a much larger display that's easier to view.
- Large display
- Backlight for work in dim areas
- Min / Max to record signal fluctuations
- Ergonomic over moulded housing with integrated probe holders
- Free your hands with the optional TPAK magnetic hanger
- Auto and Manual ranging
- Meets Measurement Category 1000 V CAT III and Category IV 600 V safety standards
Applications
Industrial, Maintenance & Repair, Test & Measurement
Contents
Multimeter, 9V battery, test leads, user manual
The Best Techs Use the Best Tools Industrial electricians around the world trust the Fluke 83V Industrial Multimeter from the control room to the plant floor. With its accuracy and troubleshooting capabilities, the Fluke 83V Industrial Multimeter works when you need it, even in loud, high energy, and high altitude locations. Identify Complex Signal Problems Fast When productivity is on the line and you need to solve problems fast, the Fluke 83V delivers the accuracy and advanced troubleshooting capabilities you need.
- Min/Max allows capture of signal changes
- 6000 count display resolution
- CAT III 1000 V, CAT IV 600 V safety rated
- Designed and built in the U.S.A.
- The most trusted industrial multimeter in the business
- Lifetime warranty
Applications
Test & Measurement, Industrial Maintenance, Safety, Electrical, Maintenance & Repair, Facility Maintenance
Contents
TL75 test leads, AC175 Alligator Clips, Holster, 9V battery (installed

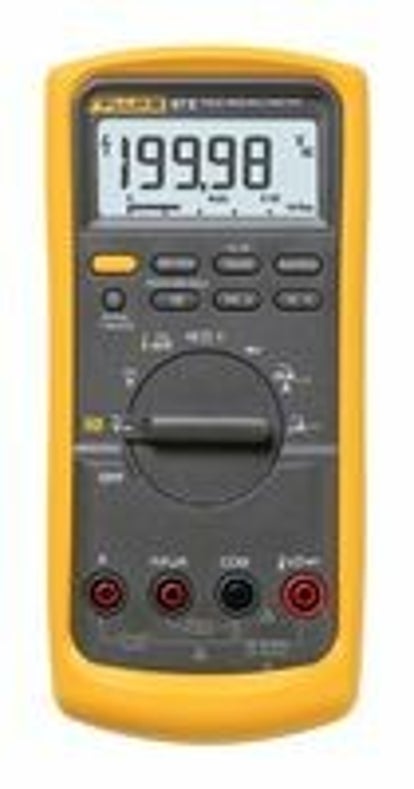

The new Fluke 87V has improved measurement functions, troubleshooting features, resolution and accuracy to solve more problems on motor drives, in plant automation, power distribution, and electromechanical equipment. The 87V operates very similar to the classic 87, but with more problem-solving power, safety, convenience and impact protection.
- Accurate voltage frequency measurements on adjustable speed motor drives and electrically equipment.built-in thermometer allows you to take temperature readings
- Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
- Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
- Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
- True RMS AC voltage and current for accurate measurements on nonlinear signals
- Selectable filter for accurate voltage and frequency measurements on motor drives
- All inputs are updated to the 3rd edition of ANSI/ISA S82.01 and EN61010-1 CAT IV 600V and CAT III, 1000 V.
- Improved selectable sleep mode for long battery life
- Touch Hold to capture stable readings avoiding noisy signals
- Min/Max-Average recording with Min/Max Alert to capture variations automatically
Applications
Test & Measurement, Industrial Maintenance, Safety, Electrical, Maintenance & Repair, Facility Maintenance
Contents
Multimeter, TL75 test leads, Crocodile clips, Holster, 9V battery, Temperature probe, User manual, Operator's guide
The Fluke 1503 Insulation Tester is compact, rugged, reliable, and easy to use. With its multiple test voltages, it is ideal for many troubleshooting, commissioning, and preventative maintenance applications. Additional features, like the remote probe on these tools save both time and money when performing tests.
- Repetitive or hard-to-reach testing is easy with the remote test probe
- Live circuit detection if voltage > 30 V is detected for added protection
- Auto-discharge of capacitive voltage for added user protection
- AC/DC voltage: 0.1 V to 600 V
- 200 mA Continuity
- Resistance: 0.01 R to 20.00 kR
- Save battery power with auto power off
- Read measurements easily with large, backlit display
- CAT IV 600 V overvoltage category rating for added user protection
- Remote probe, test leads, probes and crocodile clips included with each tester
- Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
- Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
Applications
Sensing & Instrumentation, Signal Processing, Test & Measurement, Portable Devices
Contents
Remote probe, Test leads, Test probes, Crocodile clips, Holster & User documentation
The Fluke 1507 Insulation Tester is compact, rugged, reliable, and easy to use. With its multiple test voltages, it is ideal for many troubleshooting, commissioning, and preventative maintenance applications. Additional features, like the remote probe on these tools save both time and money when performing tests.
- Repetitive or hard-to-reach testing is easy with the remote test probe
- Auto-discharge of capacitive voltage for added user protection
- AC/DC voltage: 0.1 V to 600 V
- 200 mA Continuity
- Resistance: 0.01 R to 20.00 kR
- Save battery power with auto power off
- Read measurements easily with large, backlit display
- CAT IV 600 V overvoltage category rating for added user protection
- Remote probe, test leads, probes and crocodile clips included with each tester
- Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
- Four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests
- One year warrant
Applications
Sensing & Instrumentation, Signal Processing, Test & Measurement, Portable Devices
Contents
TL224 Leads, TP74 Probes, Clips PN 1958654 (red) and PN 1958646 (black), Holster, Remote Probe
